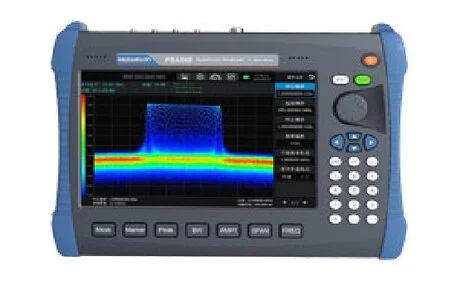

PSA080/200 Handheld Spectrum Analyzer
The PSA080/200 spectrum analyzer is a broadband, high-performance portable microwave spectrum analyzer that measures frequencies ranging from 5 kHz to 8 GHz/9 kHz to 20 GHz. It can be used in both indoor and outdoor environments.
The product adopts 10.1 inch LED backlight high brightness display screen, supporting multi touch operation, with multiple intelligent measurement functions such as spectrum Analysis, Network Measurement, Field Strength Measurement, Channel Scanning, Third-Order Intermodulation, Harmonic Distortion, Carrier To Noise Ratio, and Pass-Fail. Highly integrated RF front-end and fully digital IF technology ensure excellent performance and stable performance, with a maximum real-time bandwidth of 40 MHz to meet the testing of commonly used radio signals such as mobile communication, television, and WiFi.
Key Feature
◼︎ Frequency range: 5kHz~8GHz/9kHz~20GHz
◼︎ Noise level: better than -160dBm
◼︎ Resolution bandwidth: 1Hz~5MHz
◼︎ Maximum real-time bandwidth: 40MHz
◼︎ Built-in GPS/BD function module
