82407 Spectrum Analyzer Frequency Extension

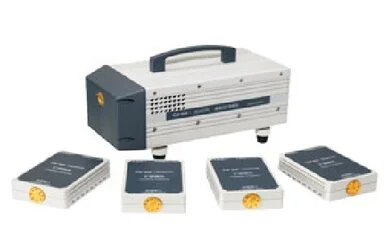

Maxwellon 82407 series Spectrum Analyzer Frequency Extension Module are designed mainly for millimeter-wave frequency extension of spectrum analysis, adopts standard waveguide interface which corresponding to its frequency range as its input interface. LO input adopts 2.4mmfemale coaxial connector and IF output adopts 3.5mm female coaxial connector, it can be used as the front-end of millimeter-wave signal receiver.
Key Feature
◼︎ Wide frequency range cover from 50GHz to 750GHz
◼︎ DANL: -150dBm @ 1Hz RBW (typical)
◼︎ USB interface
◼︎ 82407/NB/A/B/C/D size: 72 ×26 ×112mm
◼︎ 82407NC/QA/TA/R size: 120×85×240 mm
