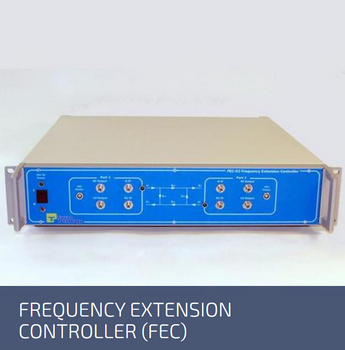

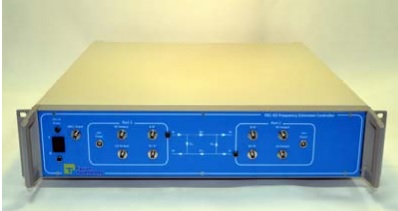

Frequency Extension Controller (FEC)

Millimeter Wave Components

Frequency Extension Controller (FEC)

The Frequency Extension Controller is part of the Farran Technology Ltd  mm-wave measurement extension solution.  It ensures that the FTL mm-wave  extension products FEV-XX are fully compatible with Keysight PNA-X  Vector Network Analyzers and offers the best S-parameters accuracy  available on the market.

Specification

Unit

Min

Typ

Max

RF Input Frequency

GHz

7



20

Lo Input Frequency

GHz

7



20

IF Input/Output Frequency

MHz

5



50

Switching Speed

┬Ás



< 1



Power Requirements



110-230 VAC @ 0.65/0.35A

Weight

Kg



8.5



Dimensions

mm

450 x 510 x 90
