Manual Phase Shifter

Active Components > Phase shifters

Phase shifters are used to continuously transform the delay of signal and adjust phase of measure system in RF transmission system and mainly used in phase-controlled antenna array radar.

In this section, you can find the phase shifters with individual data sheets containing product description, specifications and outline drawings by a quick reference guide.

Phase Shifters...4mW-100W DC-18GHz

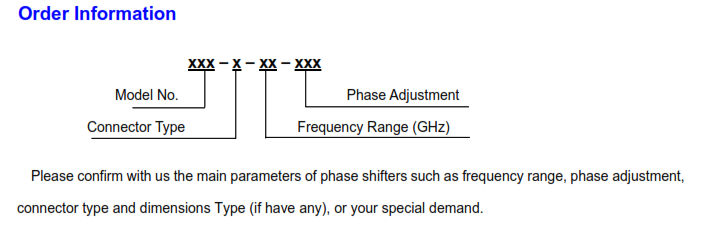

Model Number	Average Power(W)	Frequency Range(GHz)	Max VSWR	Insertion Loss(dB)	Phase Adjustment	Connector Type
BPS-H	10	DC-6	≤1.50	≤1.25	90° with 15°/GHz	N,SMA
BPS-S	50	DC-18	≤1.60	≤1.5	360° with 20°/GHz	SMA
BPS-SMA	50	DC-18	≤1.50	≤0.75	180° with 10°/GHz	SMA
BPS-G	50	DC-1	≤1.05	≤0.2	0-120°	SMA
SHX-YXQ-002	/	0.00854	≤1.25	≤0.3	27.5°±1°	BNC
CKBPS-607 6 Bit Digital	4mW	0.4-0.45	≤1.60	≤7	360°	SMA
TKE-45-8-S	50	DC-8	≤1.50	≤1.25	360° with 45°/GHz	SMA(K,K)
TKE-60-8-X-X	100	DC-8	≤1.50	≤1.25	480° with 60°/GHz	N,SMA
TKE-90-8-X-X	100	DC-8	≤1.50	≤1.50	720° with 90°/GHz	N,SMA
TKE-180-4-X-X	100	DC-4	≤1.50	≤2.0	720° with 180°/GHz	N,SMA
TKE-360-2-X-X	100	DC-2	≤1.50	≤2.0	720° with 360°/GHz	N,SMA
TKE-720-0.5-N-A	100	DC-0.5	≤1.50	≤2.0	360° with 720°/GHz	N
TKE-900-1-X-A	100	DC-1	≤1.50	≤2.0	900° with 900°/GHz	N,SMA
TKE-2000-0.09-X-A	100	0.09	≤1.30	≤2.0	0-2000°	N,,SMA
