RF & Microwave Notch Filter

Passive Components > Filters

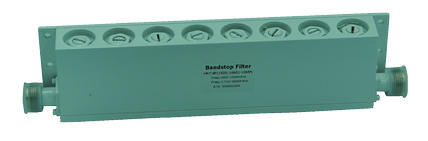

Bandstop Filter

  • Coaxial Cavity Construction,Excellent Reliability!
  • Low insertion loss,High power handling!
  • High quality,Fast delivery!

Please Send Us Your Specs for Custom Designs!

Name

Stopband Freq.(MHz)

Stopband Attenuation(dB)

Pass Band Freq.(MHz)

Pass Band Freq.(MHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling

Connectors

SF(880/960)-656S

880-960

60

DC-840

1000-2500

3.0

10

200

N-Female

SF(925/960)-652S

925-960

40

500-910

980-3000

2.0

12

50

SMA-Female

SF(1525/1660)-1065N

1525-1660

60

500-1500

1710-2600

1.7

12

100W

N-Female

SF(1805/1880)-653S

1805-1880

40

500-1787

1898-3000

2.0

12

50

SMA-Female

SF(2110/2200)-654S

2110-2200

40

500-2095

2215-3000

2.0

12

50

SMA-Female

SF(2442.5/85)-674S

2400-2485

70

DC-2390

2495-4500

4.0

10

30

SMA-Female
