Pulse Generators

Millimeter Wave Components
Insight “Penny Emitters” Pulse Generators 40-43 GHz, 52-57 GHz, 57-63 GHz



Operating Regime

Pulse peak power

0.1-12 mW

·         Pulse

·         Operating voltage U=6 V

·         Duration of power supply for pulse, Ʈpulse= 4 microseconds

·         Repetition rate of power supply for pulses = 1 to 1000 Hz.

·         Connects to mini-USB

Operating frequency range

39-65 GHz

Pulse duration

1-4 microseconds

Current threshold

100-300 mA

Voltage threshold

Not more than 4V


Not less than 0.2 GHz

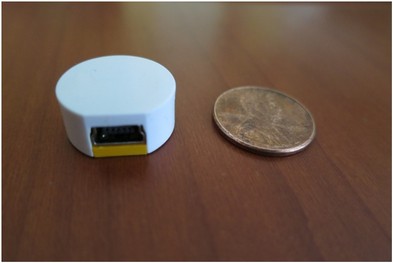

About the same as penny in diameter and width of 0.8 cm


Insight Product Co. Partial Customer List:
NASA;  Jet Propulsion Laboratory; NIST; MIT; Harvard University, Cornell University; UCLA; UCSD,
UC-Davis, SUNY-Stony Brook, Argonne National Laboratory, United States Naval Research Laboratory, Los Alamos National Laboratory; Raytheon Corp., Microsemi Corp., ETH-Zurich, Switzerland; SRON Lab for Space Research, Netherlands; Friedrich-Alexander Univeristy at Erlangen-Nurnberg, Germany; Seoul National University, South Korea; Okinawa Institute of Science and Technology, Japan; National Institute of Information and Communications Technology, Japan.
